CM-205FN

CM-205FN

Service Overview

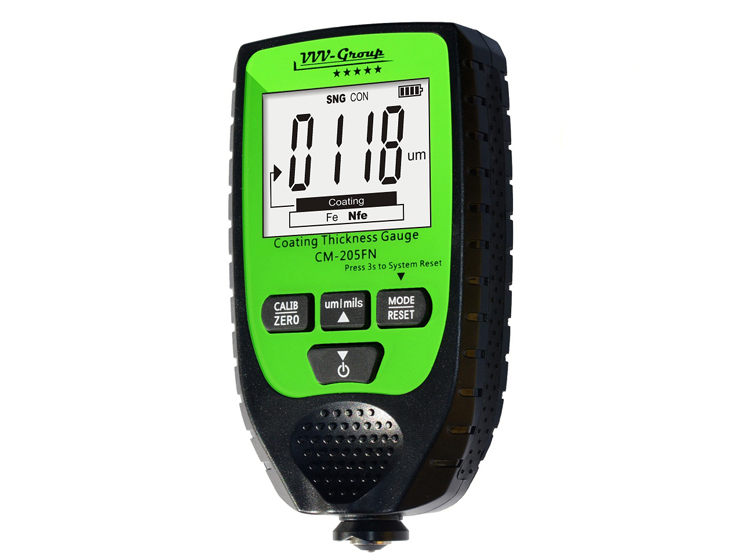

Paint Thickness Gauge CM-205

paint Thickness Gauge 17

Best Economical Thickness Gauge with the accuracy of Professional measuring equipment without unnecessary functions!

This Paint Thickness Gauge VVV-Group CM-205FN is highly accurate and compact instrument used to quickly and accurately measure thickness of

coating or plating on all kinds of metal surface. This device can be used for determining the average thickness of paint on the car body, used by amateurs and professionals.

Specifications:

Measuring principle: Magnetic induction (F-probe) and eddy current (N-probe);
Resolution: 0.01mils/0.1um;
Measuring range: 0~59.1mils (0~1500um);
Base identification: Automatic recognition for iron (ferrous) and aluminum (non-ferrous) substrates;
Display: Digital LCD with LED backlight for clear reading;
Accuracy: ± 3%;
Measurement Modes: Single, Continuous;
Measuring units: um and mil;
Calibration: Easy and fast calibration using reference plates / Factory calibration;
Powered: 2pc 1.5V AAA Batteries;
Measurement speed: less than 1 sec
Audible notification: yes
Battery charge indicator: yes
Auto power off: yes
Display backlight: yes
Range of operation temperatur -13 to 131°F / -25°C-50°C

Application of the CM-205 Thickness Gauge

Coating Thickness Gauge 12

Coating Thickness Gauge 13

Coating Thickness Gauge 14



Conveyor Painting

Measurement of coating thickness to

control the quality of painting.

Car Testing

Identification of damaged body parts on cars.

Fireproof Coating

Measurement of thicknesses of metal

fire protection coatings.

paint meter thickness gauge car

Best Car Paint Thickness Gauge

Thanks to its high accuracy and low cost, the Paint Thickness Gauge CM-205 is an ideal tool for car inspection. This digital tester has received wide

recognition among Automakers, auto auctions and auto experts.

Professionals choose Thickness Gauge CM-205!

paint thickness tester 1

Paint thickness gauge CM-205

Coating Thickness Meter CM-205 is recognized as one of the best thickness gauges, not only as a digital tester for cars, but also as a

high-precision tool for production coating measurements in industry.

Unique sensor design allows measurements on surfaces with significant convexity.

Paint Depth Gauge used to measure the thickness of pain/ enamel/ chrome on steel, paint and anodizing coating on aluminum/ copper.

! For vehicle testing, detailed calibration is not required, as the thickness gauge has a very accurate factory calibration.

We offer you a truly unique and high-quality Paint Thickness Gauge.

This is the Best Product in its class

Paint Thickness tester set 1

Included in the package

    • Paint Thickness gauge model CM-205
    • Calibration set from Aluminum and Iron plate
    • 5 calibration foils
    • Pouch for carrying and storage
    • Manual in English.
    • 2* 1.5V AAA batteries
Main advantages:
    • High Accuracy;
    • wide range of working temperature;
    • zero calibration and detailed point calibration;
    • ergonomic protected case;
    • works with ferrous and non-ferrous metals;



Additional functions:

  • Display backlight.
  • Sound assistant.
  • Battery indicator.
  • Single and continuous measurement mode.

mil paint thickness gauge car

Leading global companies widely use VVV-Group products to solve many production problems.

  • Coating Thickness Gauge CM-205 has the accuracy of an industrial measuring device, and after detailed calibration (the calibration kit is included in the thickness gauge package) can be used in large-scale production processes when checking the thickness of paint coatings.
  • Coating Thickness Gauge CM-205 is used for monitoring the thickness of fire-resistant coatings, for measuring the galvanic layer, and for measuring the thickness of powder coating.
  • Coating Thickness Gauge CM-205 can easily check any car and reveal all hidden damage to the body.



Join the team of Professionals with the Paint Thickness Gauge CM-205
